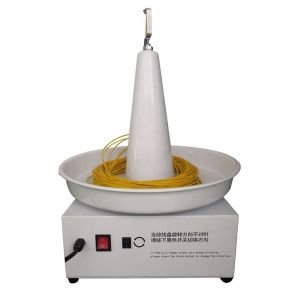

Automatic Cable Wire Tray Feeding Machine YH-B03 with 220V 50Hz Wire Feeding Function

Ask Lasest Price
Brand Name :	Yihan
Model Number :	YH-B03
Price :	$250.00/sets 1-2 sets

Add to Cart

Product Details
Company Profile

Automatic Cable Wire Tray Feeding Machine YH-B03 with 220V 50Hz Wire Feeding Function

Automatic cable wire tray feeding device/cable wire feeding machine YH-B03

FEATURE:

1.The machine is fully automatic wire feeding machine, with automatic computer stripping machine, eliminating cumbersome manual release cable. Simply put the entire volume of the wire fixed in line frame, start the motor to send line, automatically shut down when wires loose to a certain extent. Suitable for a variety of peripheral electronic discharge line, cable, sheathed cable, steel wire,tape reel and without wire spool actinomycetes.

2.This machine is compact design, easy setup spool and feed wire, clamping the spool can greatly reduce labor intensity, improve production efficiency.

3.Any form of automatic terminal crimping machine or computer cutting machine can match the host with the wire to make no resistance, and synchronized delivery lines.

4.The machine is controlled independent no need to synchronize with the host , simple operation, easy to apply, can match different manufacturers’ automatic stripping machine;

5.The machine can be modified and customized according to special requirements of customers.

PRODUCT PARAMETERS

Product name	Automatic wire feeder
Product mode	YH-B03
Function	wire feeding
Product bearing	13KG
Net machine weight	9KG
Coil outer diameter	380MM
Coil inner diameter	350MM
Coil spindle	120MM
Size	390MM390MM500MM
Power	220v 50hz
Product function	Suitable for all automatic machines, cutting machines (in addition to the flat shape of the parallel cable)
Product features	No need to connect with the machine, autonomously identify the length of the wire (full closed loop control)
Applicable wire	Various lines such as high temperature line, super long line, Teflon line

Automatic Cable Wire Tray Feeding Machine YH-B03 with 220V 50Hz Wire Feeding Function

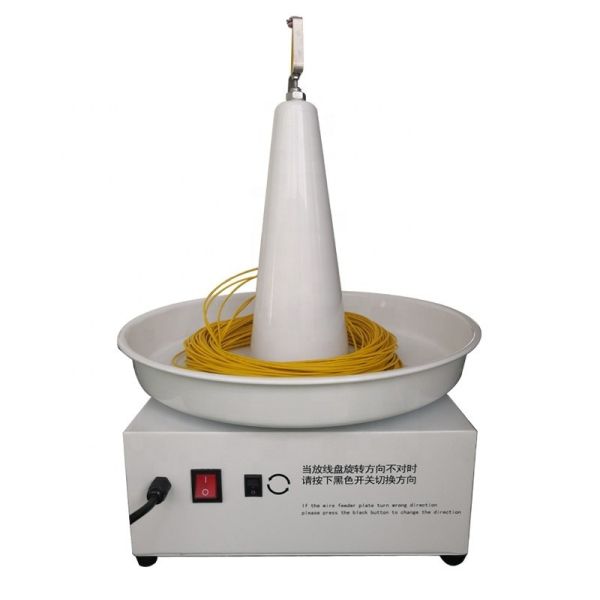

Product show
